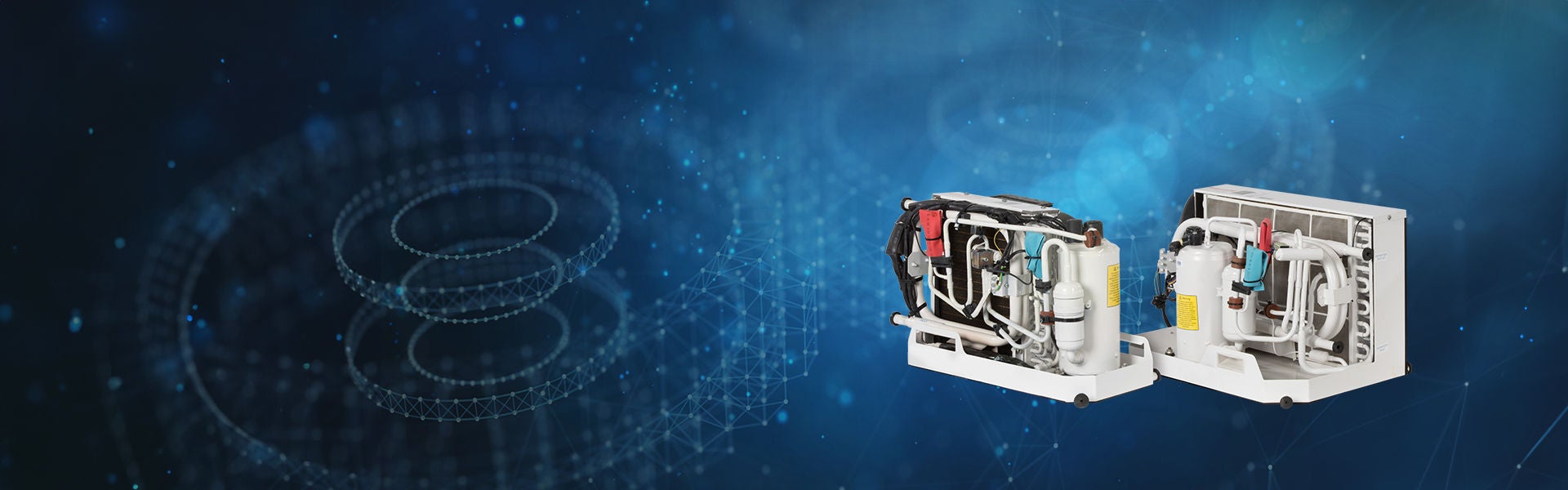

FCF Platinum
Series
Experience superior marine comfort with FCF Platinum’s powerful 12,000 and 16,000 BTU cooling
The Webasto FCF Platinum series is the newest advancement in marine air conditioning, providing enhanced performance and higher BTU ratings across a range of ambient conditions. Available in 12,000 and 16,000 BTU/h models, the FCF Platinum is designed to offer quiet, efficient cooling and heating for boats with up to three cabins. This model comes with a two-year warranty and is built for durability, featuring marine-grade stainless steel construction. An optional remote control allows you to adjust the system from anywhere on your vessel, ensuring complete comfort.
Discover the advantages of the FCF Platinum
The Webasto FCF Platinum series sets a new standard for marine air conditioning, offering powerful cooling and heating for multiple cabins. Engineered with a higher BTU/h rating, the FCF Platinum performs optimally in a variety of conditions, providing reliable comfort on board. Its marine-grade stainless steel construction ensures longevity, while the system’s noise and vibration reduction features create a quiet onboard environment. The FCF Platinum also comes with an optional remote control, allowing users to adjust settings from any location on the vessel. Backed by a two-year warranty, the FCF Platinum is a premium choice for marine comfort.
Product details
Product specifications
FCF Platinum 6,000 BTU/h Model
Cooling capacity: 6,000 BTU/h
Heating capacity: 6,000 BTU/h
Rated frequency: 60 Hz (115 V), 50/60 Hz (230 V)
Rated current: 4.7 A (115 V), 2.9 / 2.4 A (230 V)
Refrigerant charge: R410A (0.35 kg)
Compressor LRA: 21A (115 V), 14A (230 V)
Minimum condenser water flow: 1.06 Gal/Min (4 L/Min)
Dimensions (L x W x H): 11.2 x 16 x 11.6 in (285 x 408 x 295 mm)
Weight: 56 lbs (25.5 kg)
FCF Platinum 10,000 BTU/h Model
Cooling capacity: 10,000 BTU/h
Heating capacity: 10,000 BTU/h
Rated frequency: 60 Hz (115 V), 50/60 Hz (230 V)
Rated current: 7.2 A (115 V), 4.2 / 3.7 A (230 V)
Refrigerant charge: R410A (0.45 kg)
Compressor LRA: 34A (115 V), 17A (230 V)
Minimum condenser water flow: 1.59 Gal/Min (6 L/Min)
Dimensions (L x W x H): 15 x 16 x 12.2 in (380 x 408 x 310 mm)
Weight: 60 lbs (27 kg)
FCF Platinum 12,000 BTU/h Model
Cooling capacity: 12,000 BTU/h
Heating capacity: 13,000 BTU/h
Rated frequency: 60 Hz (115 V), 50/60 Hz (230 V)
Rated current: 10 A (115 V), 5.1 / 4.6 A (230 V)
Refrigerant charge: R410A (0.5kg)
Compressor LRA: 47A (115V), 27A (230V)
Minimum condenser water flow: 2.77 Gal/Min (10.5 L/Min)
Dimensions (L x W x H): 21.6 x 13.1 x 12.5 in (549 x 330 x 320 mm)
Weight: 72 lbs (33 kg)
FCF Platinum 16,000 BTU/h Model
Cooling capacity: 16,000 BTU/h
Heating capacity: 16,200 BTU/h
Rated frequency: 60 Hz (115 V), 50/60 Hz (230 V)
Rated current: 11.2 A (115 V), 5.7 / 5.6 A (230 V)
Refrigerant charge: R410A (0.7 kg)
Compressor LRA: 60A (115 V), 35A (230 V)
Minimum condenser water flow: 3.43 Gal/Min (13 L/Min)
Dimensions (L x W x H): 24.3 x 13.5 x 13 in (619 x 343 x 330 mm)
Weight: 88 lbs (40 kg)
FCF Platinum 25,500 BTU/h Model
Cooling capacity: 25,500 BTU/h
Heating capacity: 25,900 BTU/h
Rated frequency: 50/60 Hz
Rated current: 6.8 / 8.0 A
Refrigerant charge: R410A (0.95 kg)
Compressor LRA: 52A
Minimum condenser water flow: 6.34 Gal/Min (24 L/Min)
Dimensions (L x W x H): 20.8 x 23.4 x 15 in (529 x 595 x 386 mm)
Weight: 133 lbs (60.5 kg)
