New efficient Webasto
High Voltage Heaters for
electric vehicles

There are now three new electric High Voltage Heaters (HVH) from Webasto with 10 to 12 kilowatts of heating power for electric cars, trucks, buses, construction machinery, and special vehicles. The "HVH 100 Compact", "HVH 100 Compact+" and "HVH 120" heaters are no larger than a DIN A4 sheet of paper and convert direct electric current into heat with practically no losses (more than 95 per cent).



Header picture press release HVH 100C / 120

Stockdorf – February 27, 2024 – Every electric vehicle needs a heater, because the interior cannot be heated with heat from the engine as in fuel-powered vehicles. Electric High Voltage Heaters from Webasto not only heat the cabin or the passenger compartment but can also optimise the temperature of traction batteries. This has a positive effect on range and service life.



The thin heating layer of the High Voltage Heaters is firmly bonded onto the heat exchanger having a large contact area. As a result, the three new HVHs heat up extremely fast and are highly efficient. Both the temperature and the heat output are infinitely and steplessly adjustable. This means that only the heat that is actually needed is produced. The service life of the High Voltage Heaters is between 15,000 and 25,000 heating hours.

Small but powerful



The devices require very little installation space. Measuring 284 x 200 x 72 millimetres, the footprint of the HVH 100 Compact and HVH 100 Compact+ is smaller than a DIN A4 sheet of paper and they are only around 7 centimetres high. The HVH 120 is around 4 centimetres longer. The weight is 2.2 and 2.5 kilograms. No rare earths are used for the high-voltage heaters.



The heaters support low voltages of 12 or 24 volts (V) and heat in the high-voltage range from 250 to 880 V. Despite their compact size, the power packs deliver 10 and 12 kilowatts (kW) of heating power and are therefore particularly efficient. If the heat requirement for passenger or cargo compartments is greater, several HVH can be combined. They heat the cabin and keep the batteries in their "comfort zone" between 25 and 30 degrees Celsius.



All three heaters are controlled via LIN bus (Local Interconnect Network). The HVH 100 Compact+ and the HVH 120 also utilise the faster CAN protocol (Controller Area Network), which is commonly used in commercial vehicles.

For great heat requirement, several HVH can be combined If the heat requirement for passenger or cargo compartments is greater, several HVH can be combined.

Safe for all situations



The three HVH are certified for various applications in accordance with CE, ECE-R10 and ECE-R122. They have active discharge support, for example to discharge the high-voltage circuit to a safe voltage range of below 60 V in milliseconds before working on the device. The high-voltage heaters are protected against cyber attacks and certified in accordance with ISO 21434. Functional safety is ensured in accordance with the specifications of ISO 26262 - the 10-kW variants with ASIL B, the 12-kW variant even with the highest level ASIL D (overheating) and thus for vehicles in which people are also sleeping. For special vibration requirements, the HVH 120 fulfils the current vibration standard ISO16750-3 (2023), profile XVI.



"The focus during development was on making the three new High Voltage Heaters more compact, lighter and more sustainable, while at the same time covering the widest possible range of applications. Thanks to the various connection and control options, the HVH can be flexibly integrated into vehicles and machines," says Webasto Chief Technology Officer Marcel Bartling.

Share now

Press contact

Spokeswoman product and technology topics

Alice Röhler

Communication Manager Customized & Lifecycle Solutions

Phone: +49 (89) 8 57 94-52662
E-Mail: alice.roehler@webasto.com

Spokesman Battery and Thermo Systems

Michael Halser

Communication Manager / Spokesman Battery and Thermo Systems


Phone: +49 (89) 8 57 94-53340
E-Mail: michael.halser@webasto.com

Michael Halser - Product and Technology Topics

Downloads

The following news that could also interest you

  • Systems Partner for Mobility at Inter Airport Europe

    Webasto will be showcasing its solutions in the fields of charging solutions, battery systems and thermal management under the “Ensuring Future Mobility” trade fair slogan at Inter Airport Europe 2021, which takes place in Munich from November 9 to 12.
    Webasto at Inter Airport Europe ©Webasto Group
  • Webasto at RETTmobil International in Fulda

    From May 11 to 13, 2022, Webasto will present its solutions as the leading system supplier for combustion and electric rescue vehicles.
    HEPA air filters
  • Sophisticated battery solution

    Battery system expert Webasto and Danfoss Editron, in collaboration with Dutch manufacturer Dieseko, venture into electrification of a giant drilling rig. The Woltman 90DRe weighs in at 90 tons and can drive piles of up to 36 meters in length into the ground by drilling or driving.

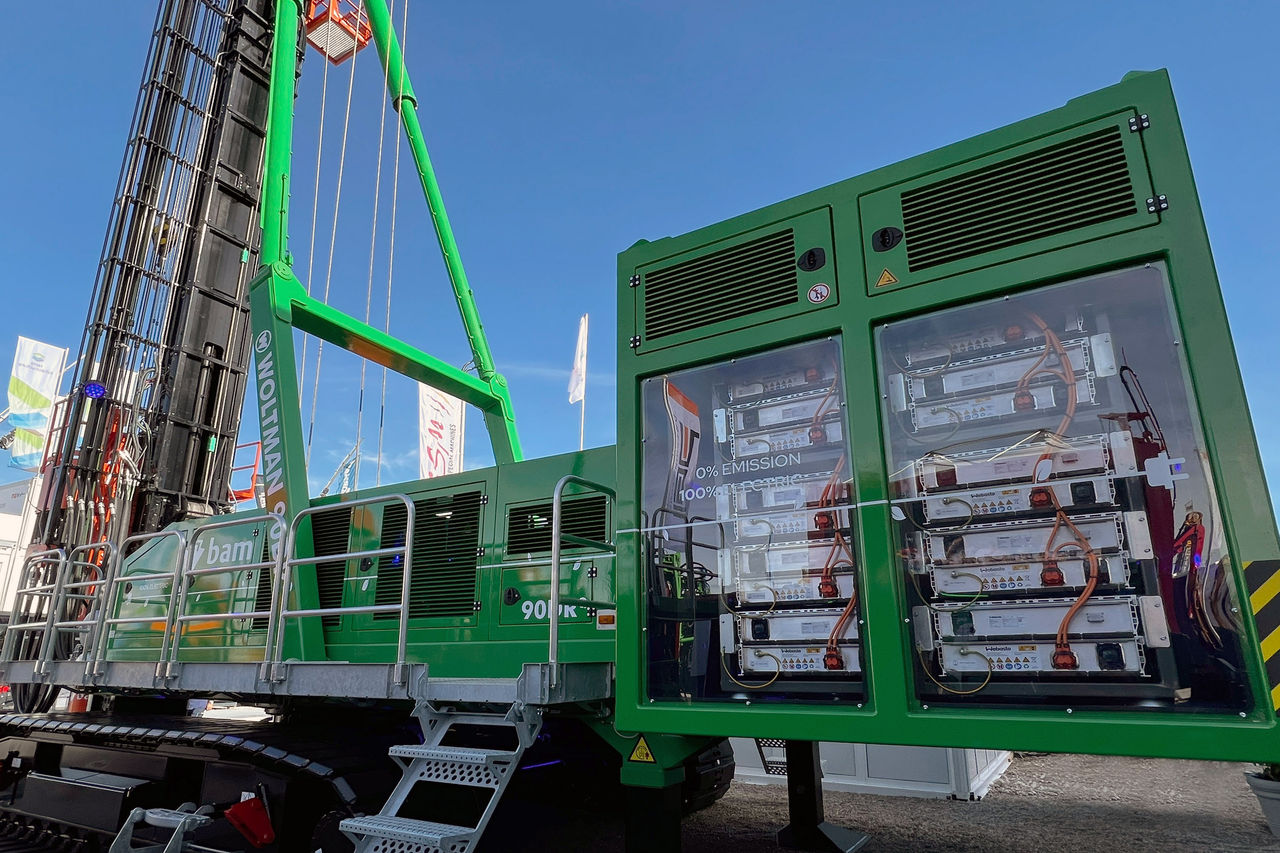

    Webasto and Dieseko electrify the 90 tons weighing giant drill Woltman 90DRe.
  • EIB supports sustainable battery development

    German automotive supplier Webasto sets the course for a sustainable and successful future. The European Investment Bank (EIB) is supporting the project by granting a Green Loan.

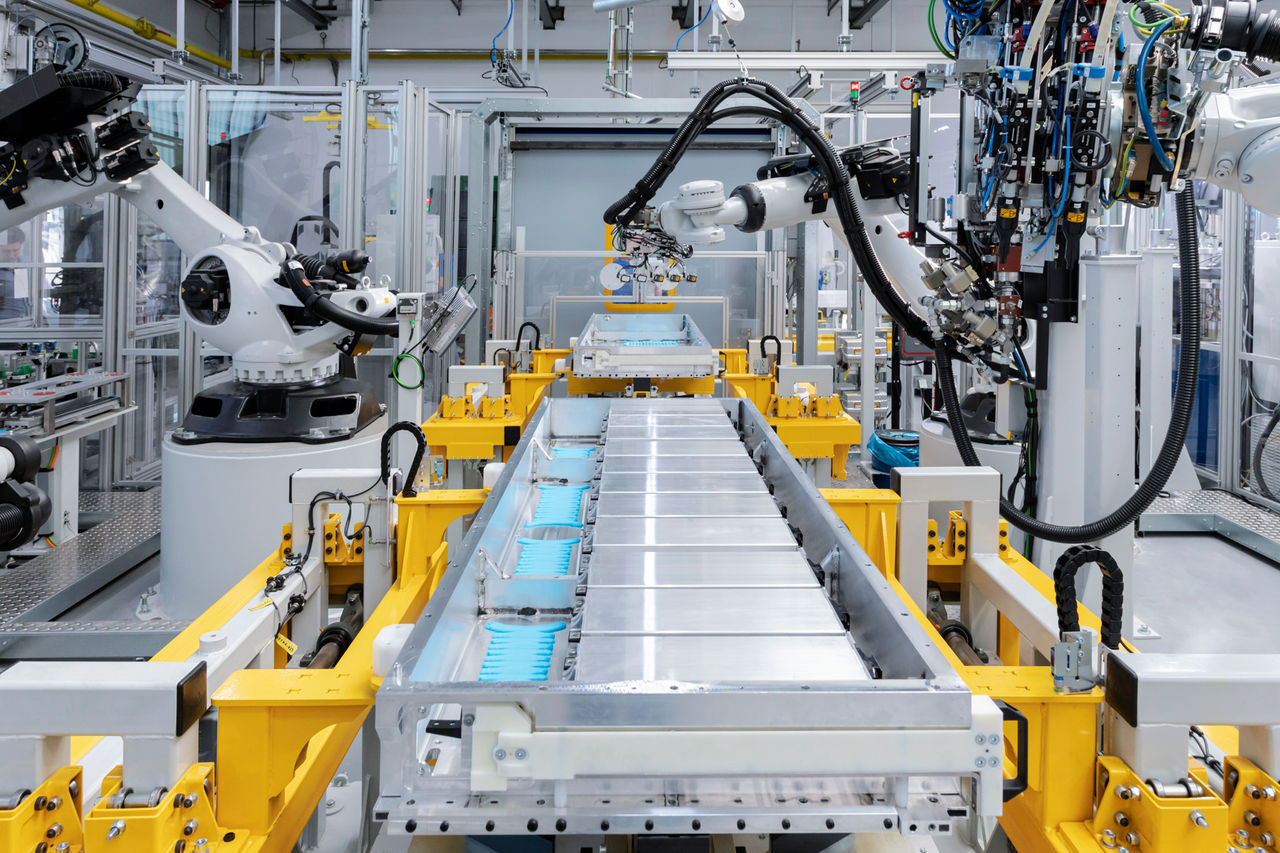

    Webasto Battery Production Schierling ©Webasto SE
  • Schierling Photovoltaic System Commissioned

    Top 100 automotive supplier Webasto is consistently pursuing its path towards sustainable electromobility and will utilize on-site generated solar power to produce batteries at its Schierling site in future.

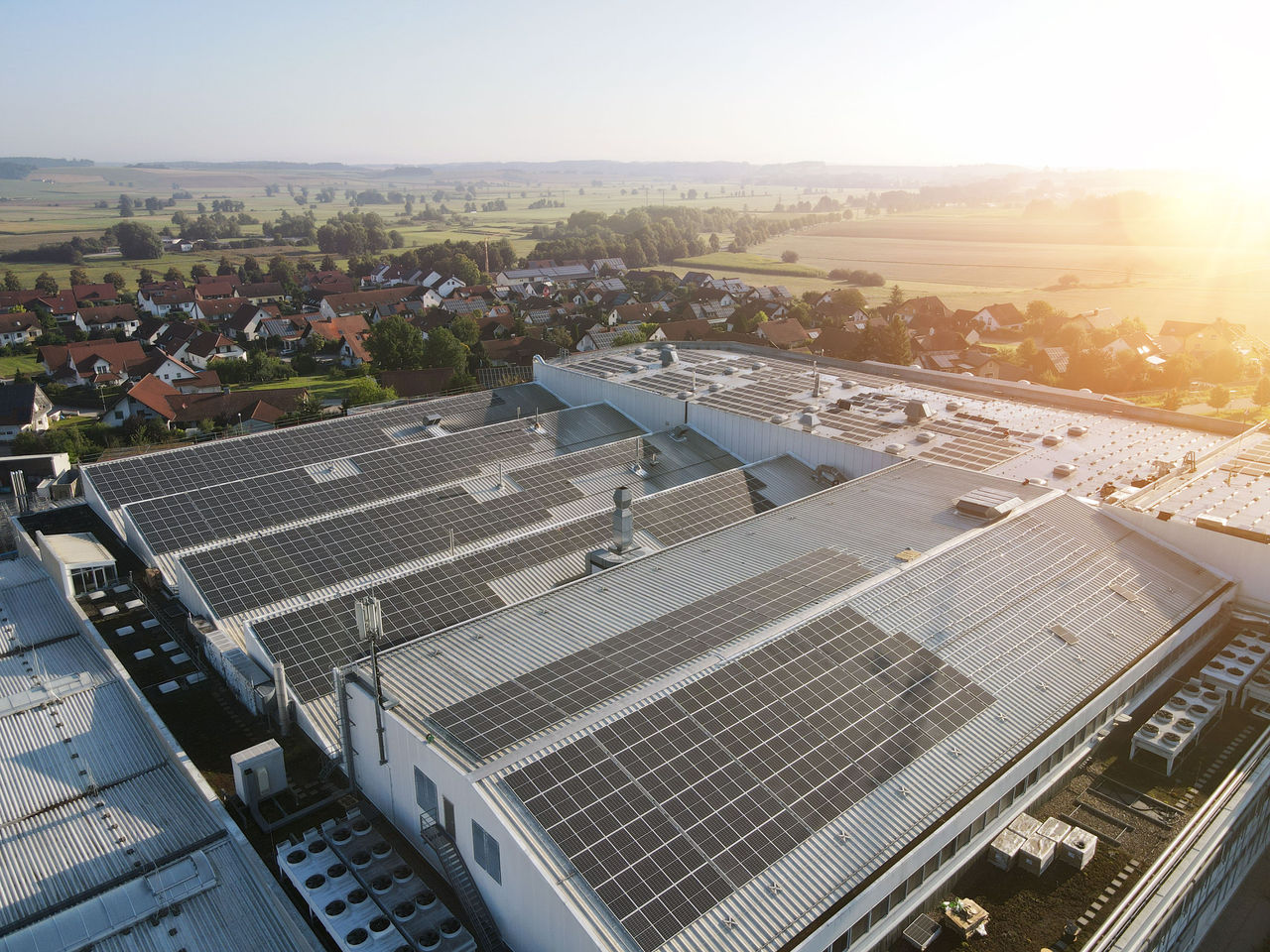

    Schierling Plant Photovoltaik System © Webasto 2021
  • The new Lotus Eletre

    Webasto delivers intelligent and efficient automated driving and electromobility solutions for Lotus’ all-electric SUV.
    Webasto Lotus Eletre RSM
  • Battery Show Europe: The Future of Electromobility in Focus

    Batteries and heating systems from a single source: At the trade fair in Stuttgart, from May 23–25, 2023, the top 100 automotive supplier will be showcasing its extensive sustainable mobility portfolio.
    Webasto Battery Show 2023
  • Innovative and sustainable Battery Systems

    Electromobility has the potential to reduce both environmental impact and dependence on fossil fuels. But challenges also exist.
    IAA Mobility Green Battery
  • Battery Show Europe in Stuttgart

    Webasto is showcasing itself as a leading electromobility system provider at the Battery Show Europe and presents its first own passenger car battery.
    The CV NextGen Battery delivers up to 40 percent more energy
  • Standard battery system receives CE mark

    With the CE label, the EU Declaration of Conformity for the use of batteries in traction applications such as mobile machines, customers of the Top 100 supplier Webasto receive additional safety when using the standard battery system.

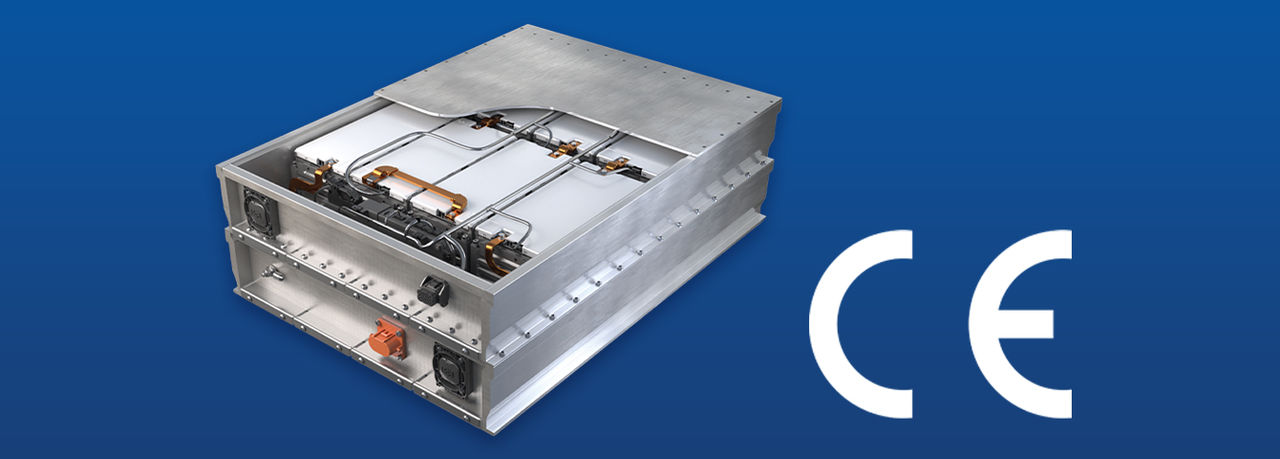

    Webasto Battery CE
  • Webasto and E.C.E electrify construction machinery

    Webasto supports the Dutch start-up E.C.E with its battery technology and corresponding thermal management in the conversion of excavators.
    DX 165 ELECTRIC with Webasto Batteries (┬® E.C.E.)
  • IAA Transportation: Commercial vehicle e-mobility

    Under the motto “Ensuring mobility of the future”, automotive supplier Webasto is showcasing its extensive electromobility portfolio at the IAA Transportation trade fair.
    IAA Transportation 2022
  • Solutions for emergency vehicles

    At the RETTmobil International trade fair, the top 100 automotive supplier will showcase networked solutions for vehicles with both conventional and electric powertrains at booth 608 (Hall 6) from May 10 to 12, 2023.
    Webasto RETTmobil ©Webasto Group
  • Field Data Monitoring telemetry service for traction batteries

    Customers can now access the performance parameters of their Webasto traction batteries. The top 100 automotive supplier lays the foundation for a range of new functions and services with a combination of compact hardware and software.
    The Field Data Monitoring telemetry service allows customers to access diagnostic data from the Webasto standard battery system or obtain extended warranty services.
  • Webasto shows its expertise at the IAA Mobility

    The top 100 automotive supplier is demonstrating its innovative strength in the areas Roof and Electrification between September 5 and 10, 2023 in Munich.
    IAA Mobility 2023
  • Power2Drive: Future electromobility solutions

    At the Power2Drive Europe 2022 trade fair in Munich, from May 11 to 13, Webasto will be exhibiting its offerings relating to charging solutions for electric vehicles and the electrification of commercial vehicles.
    City Background
  • Bauma: Solutions for construction industry electrification

    At the Bauma trade fair in Munich (October 24–30), the top-100 automotive supplier will exhibit solutions for the electrification of construction and commercial vehicles.
    Electric excavator shovels soil in front of slightly cloudy sky.
  • Metstrade: New Air Conditioning Technology Plus Battery and Roof Solutions

    From November 15 to 17, the global systems partner to the mobility sector will be exhibiting its latest heating, air conditioning, cooling, battery, roof and sun protection solutions together with Indel Webasto Marine at Metstrade in Amsterdam.
    Header 50-Series
  • METSTRADE: Customized E-Mobility, Climate and Roof Solutions

    From November 16 to 18, Webasto, thermal management expert and electromobility systems partner, will showcase customized solutions in the fields of climate control and electromobility, together with customized roof solutions for boat-specific requirements, at METSTRADE in Amsterdam.
    Webasto ECBA Ferry ©Webasto-Group
  • Hubert Aiwanger at competence center for battery production

    With investments and innovations, Webasto has been successfully developing its location in the Upper Palatinate for decades, thus securing its competitiveness and jobs in the region.
    Webasto visit Aiwanger Schierling
  • Significant increase in electromobility order volume

    The German automotive supplier looks back on a successful year. Its battery, electric heater and charging solutions business surged ahead in 2022.
  • Auto Shanghai: Solutions for a sustainable and enjoyable mobility

    The automotive supplier will demonstrate its innovative strengths by exhibiting its efficient electromobility solutions and showing how special effects in the vehicle interior can be achieved by using high-tech glass.
    Webasto_at_AutoShanghai_2023-01 ©Webasto_Group
  • Batteries from Webasto Power Innovative E-Shuttle

    The demand for battery-powered mobility solutions for local public transport is increasing, particularly in metropolitan areas. French company Lohr is meeting the growing demand with an innovative E-Shuttle system. The batteries to power it come from Webasto.
    Cristal Shuttle ©Lohr

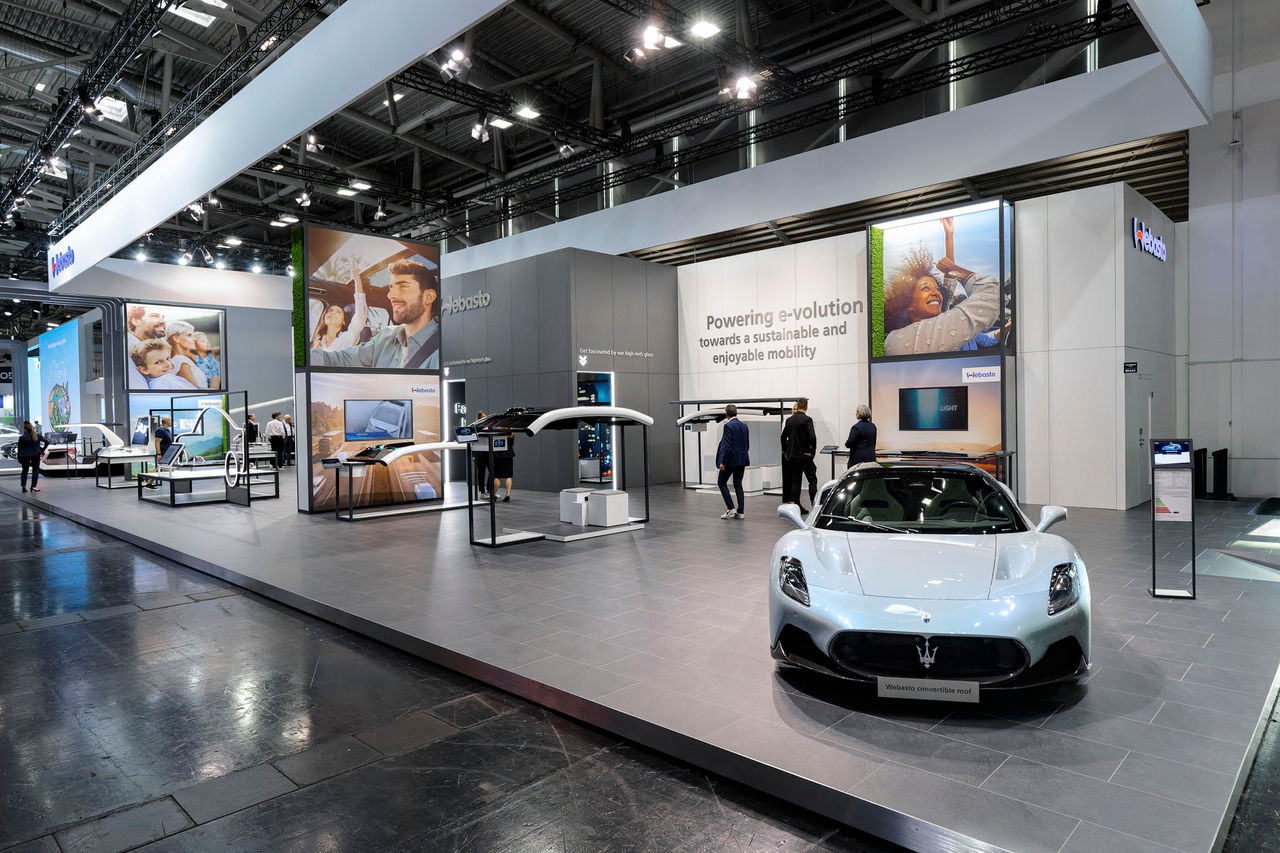

  • IAA Mobility 2023: Innovations in Roof and Electrification
